QSC’s GX Series amplifiers are ideal for professional entertainers who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand – professional audio quality, meticulous engineering, precision manufacturing and long-term reliability – are all intrinsic to GX. Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value – something everyone can use.

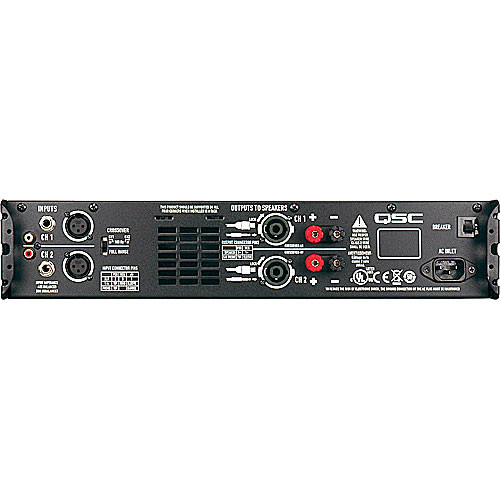

The outputs feature speaker binding posts and speakON connections. Detented gain controls provide precise level settings. QSC’s GuardRail protection delivers full peak power while preventing detrimental overloads due to excessive clipping or overheating. In addition, a built-in 180 Hz crossover splits low- and mid-frequency signal between the left and right channel. This is ideal for driving subwoofers. The GX5 is a feature packed, lightweight amplifier that’s suitable for midsize venue installation, musicians, mobile DJs, etc.
The GX5 uses a Class H system, based on key elements of the PL Series, (PLX, PL3, CX, DCA) almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right where it needs to be without excess loss.
Like the GX3, the GX5 uses premium toroidal power transformers for reliable “mid-weight” performance. A variable-speed fan moves air crosswise through the amplifier, drawing cool air in over the power transformer, through the fan, and then over the heat sink. This keeps the transformer cool and allows a full size heat sink to fit in a down-sized chassis.
Features
Ouput
- 8 ohms / 1kHz – both channels driven: 500W
- 8 ohms / 1kHz – single channel driven: 650W
- 4 ohms / 1kHz – both channels driven: 700W
- 4 ohms / 1kHz – single channel driven: 850W
Distortion (1 dB below rated power, 1kHz)
- 8 ohms: less than 0.02%
- 4 ohms: less than 0.05%
Signal to Noise (20Hz-20kHz): 100dB
Input Sensitivity: 1.2Vrms
Frequency Response: 20Hz-20kHz, +0, -1dB
Input Connectors (each channel): 3-pin XLR and 1/4″ TRS, balanced, parallel
Output Connectors (each channel): Speakon®, 1/4″, Binding Post
Dimensions HxWxD: 3.5″ (89 mm) 2RU x 19″ (483 mm) x 10.1″ (257 mm
Weight Net: 28 lbs (12.6 kg)
Shipping: 32 lbs (14.6 kg)
